Description

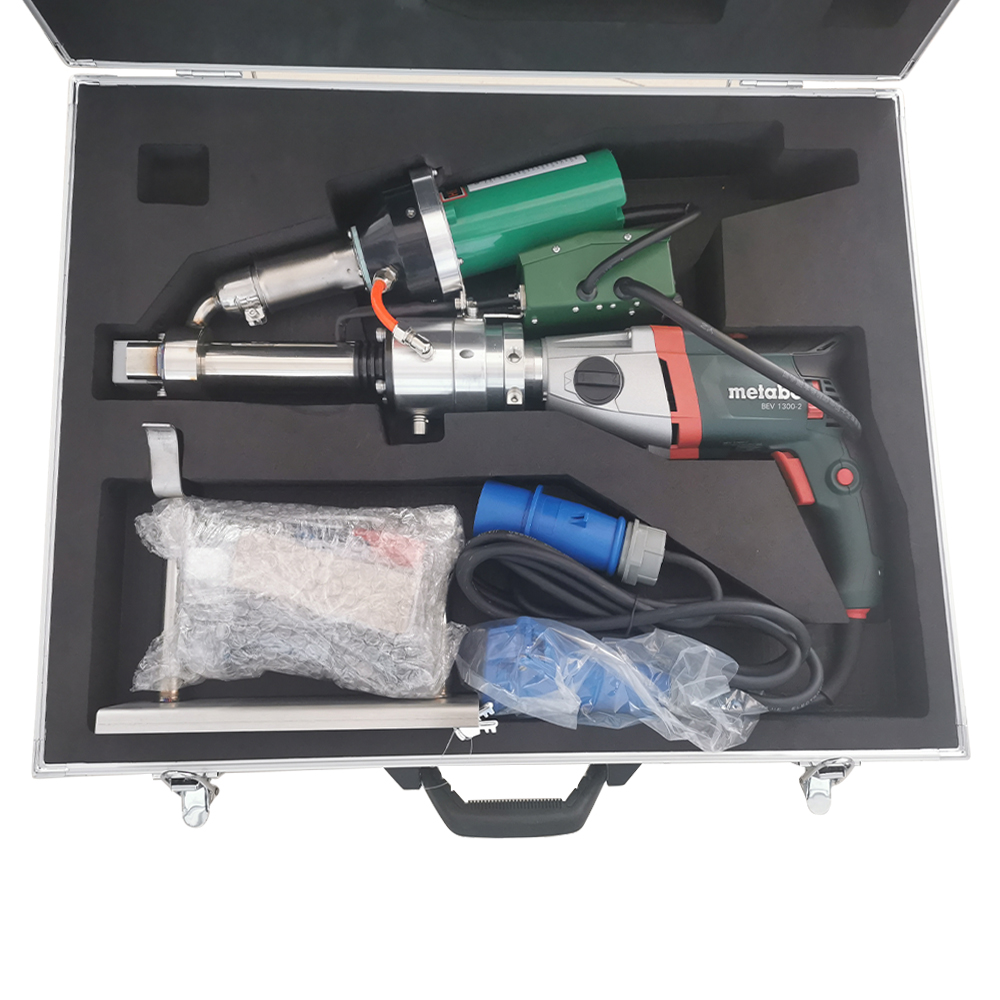

Accessories:

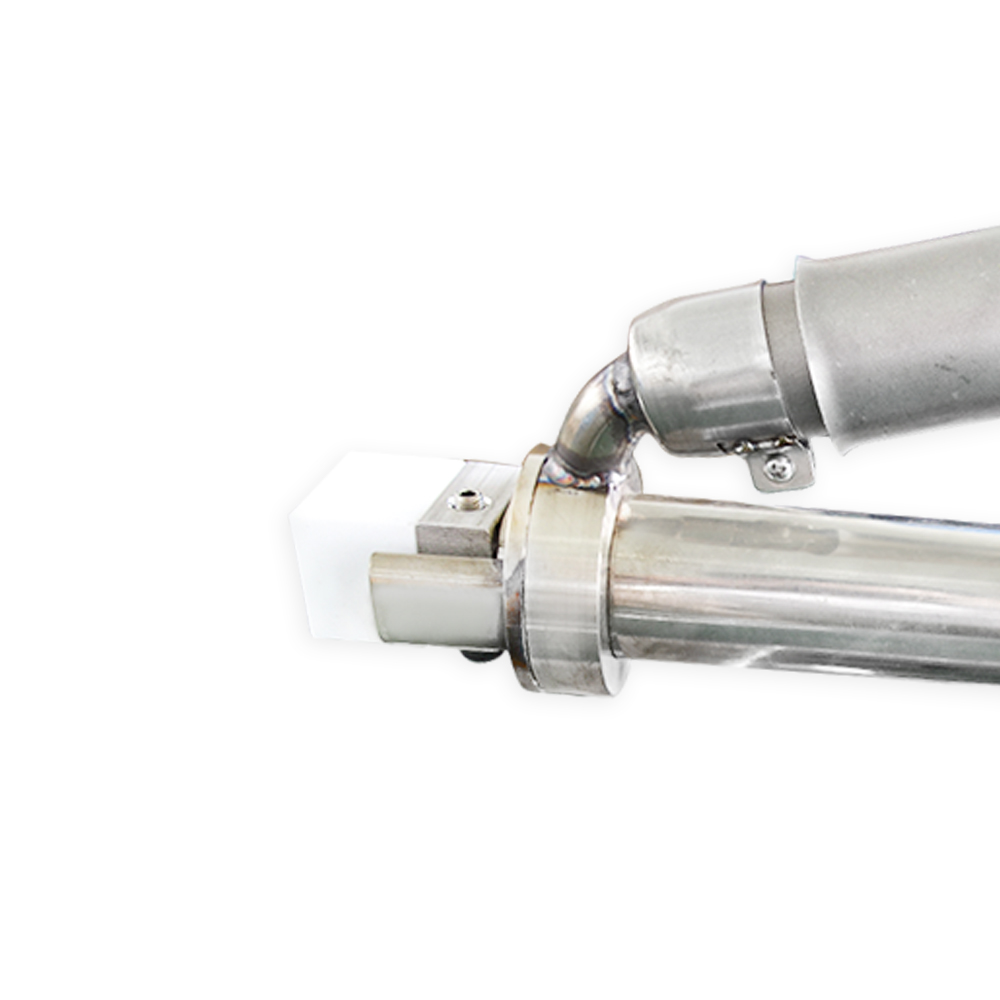

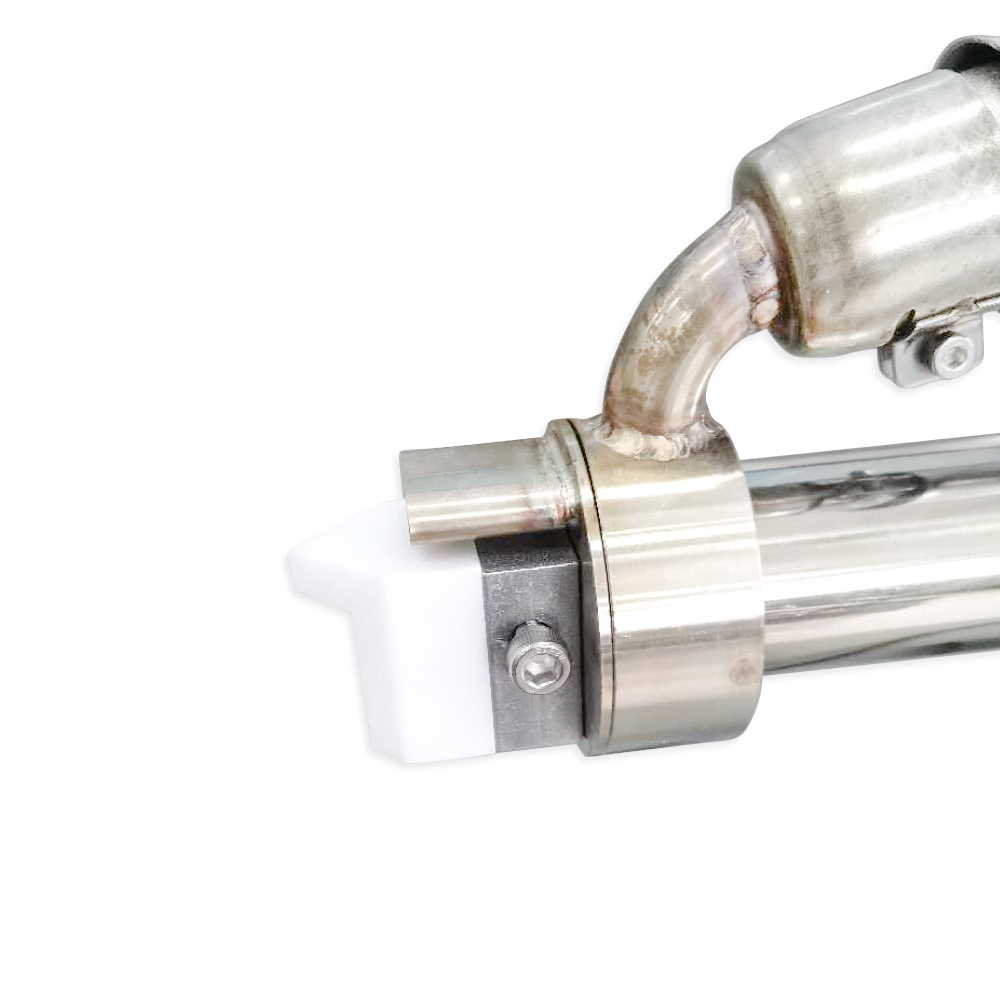

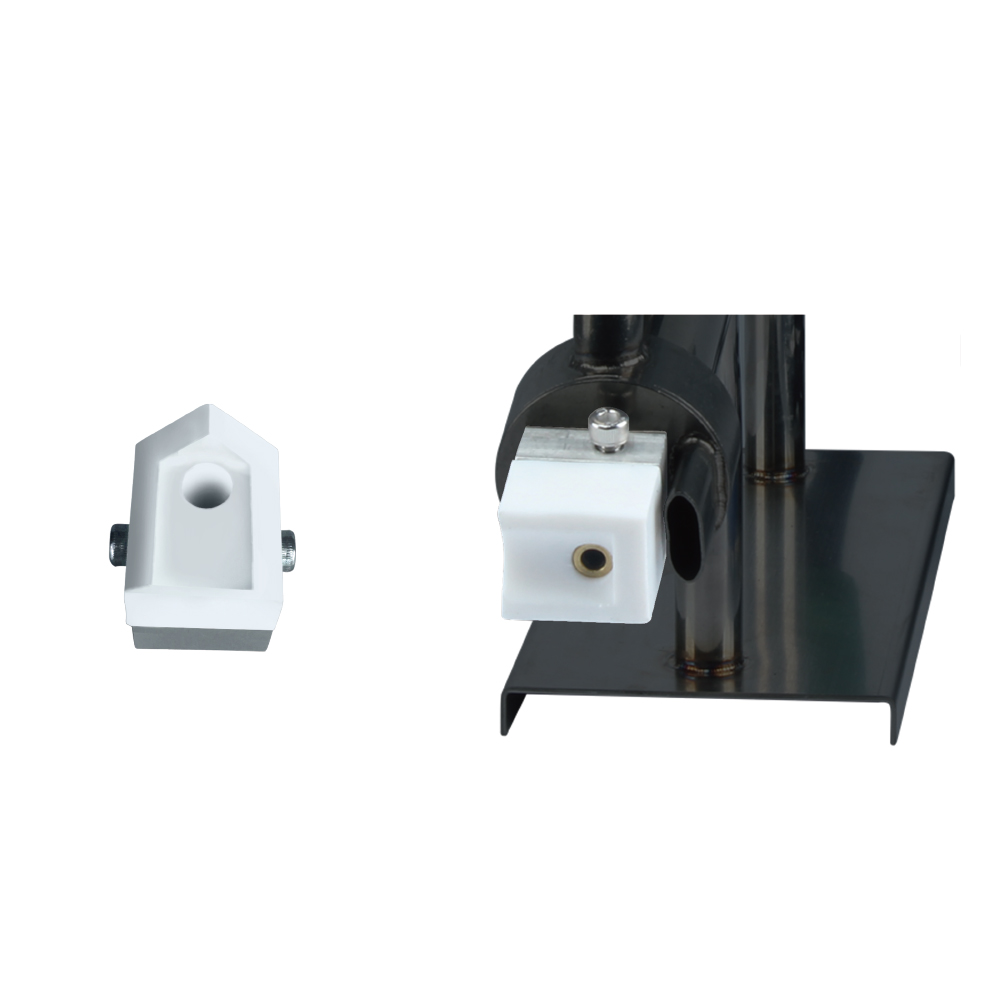

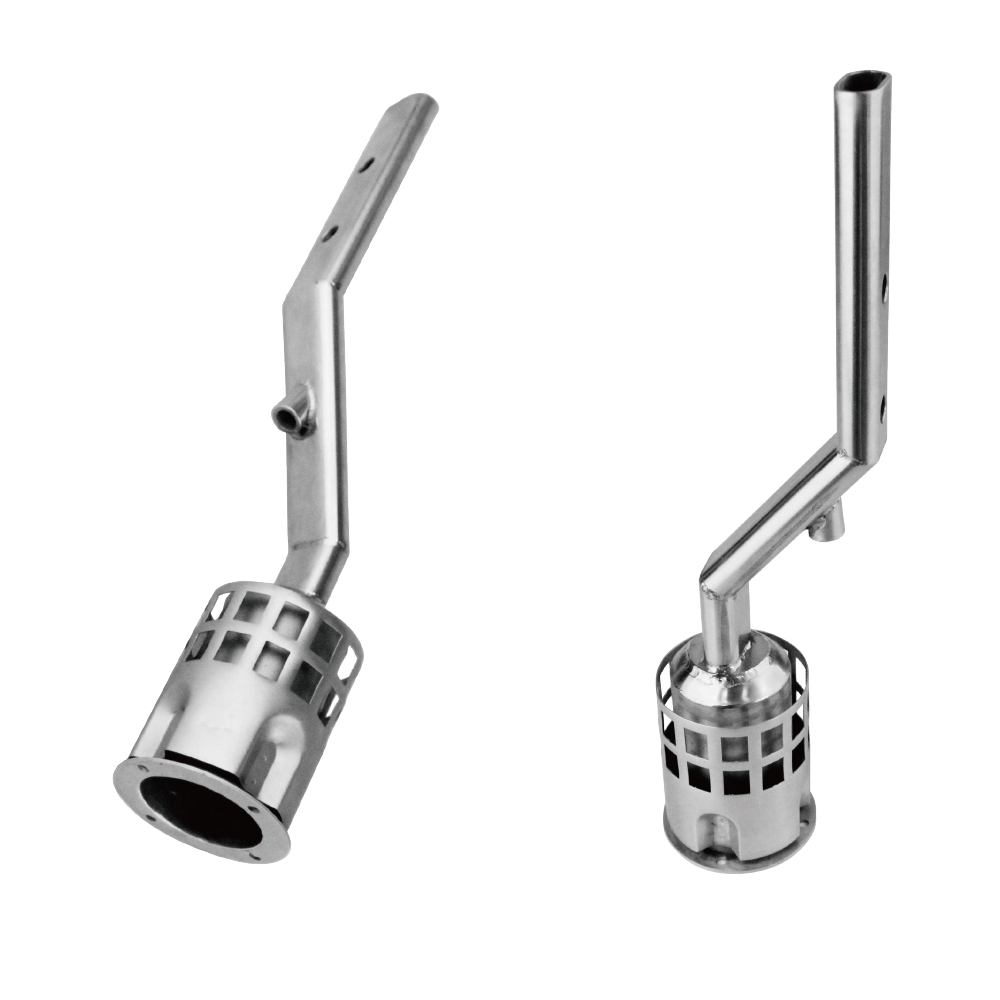

It comes with two welding shoes, flat one and corner one.

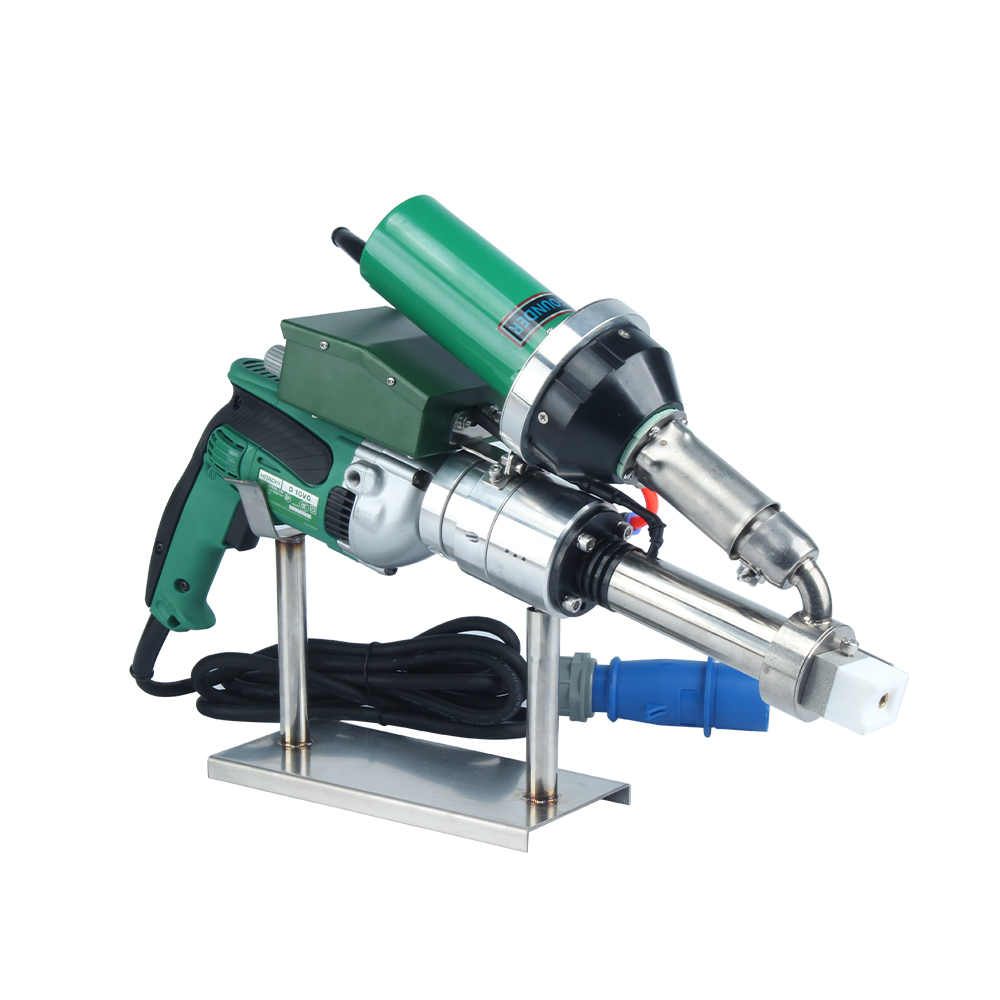

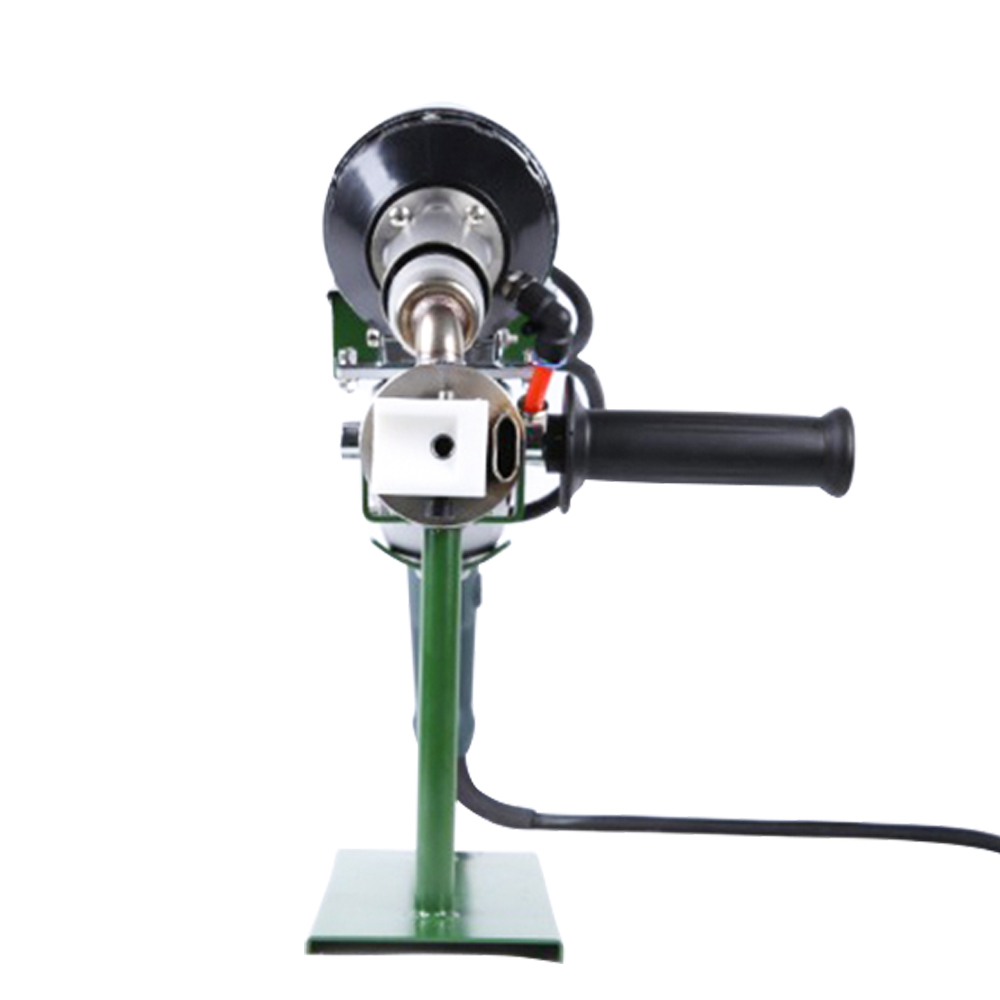

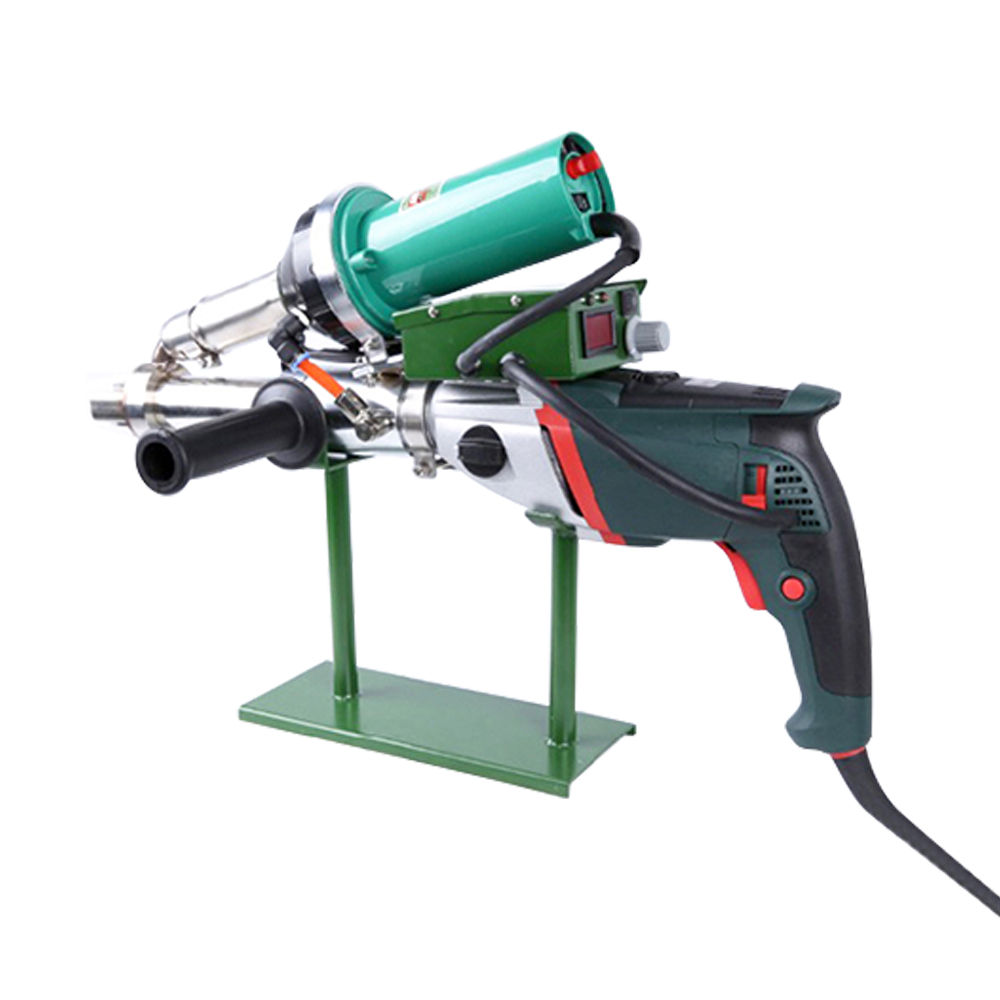

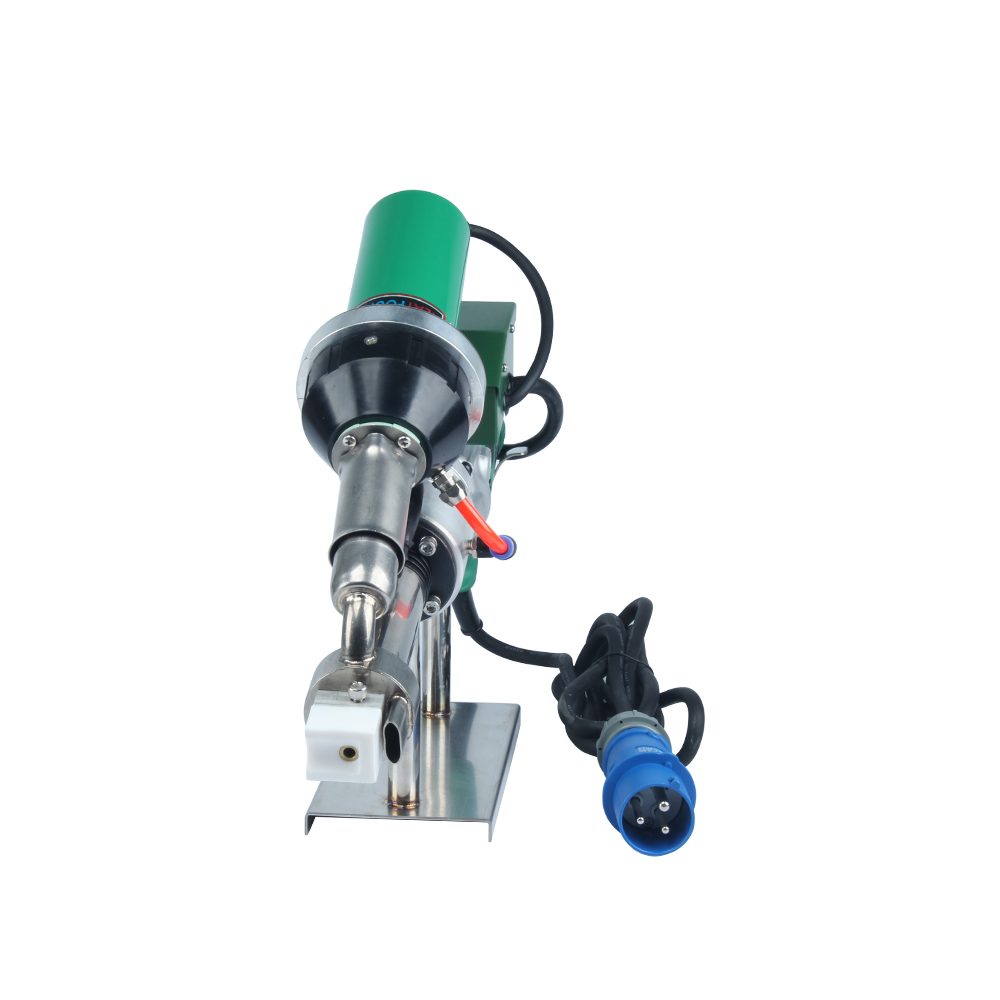

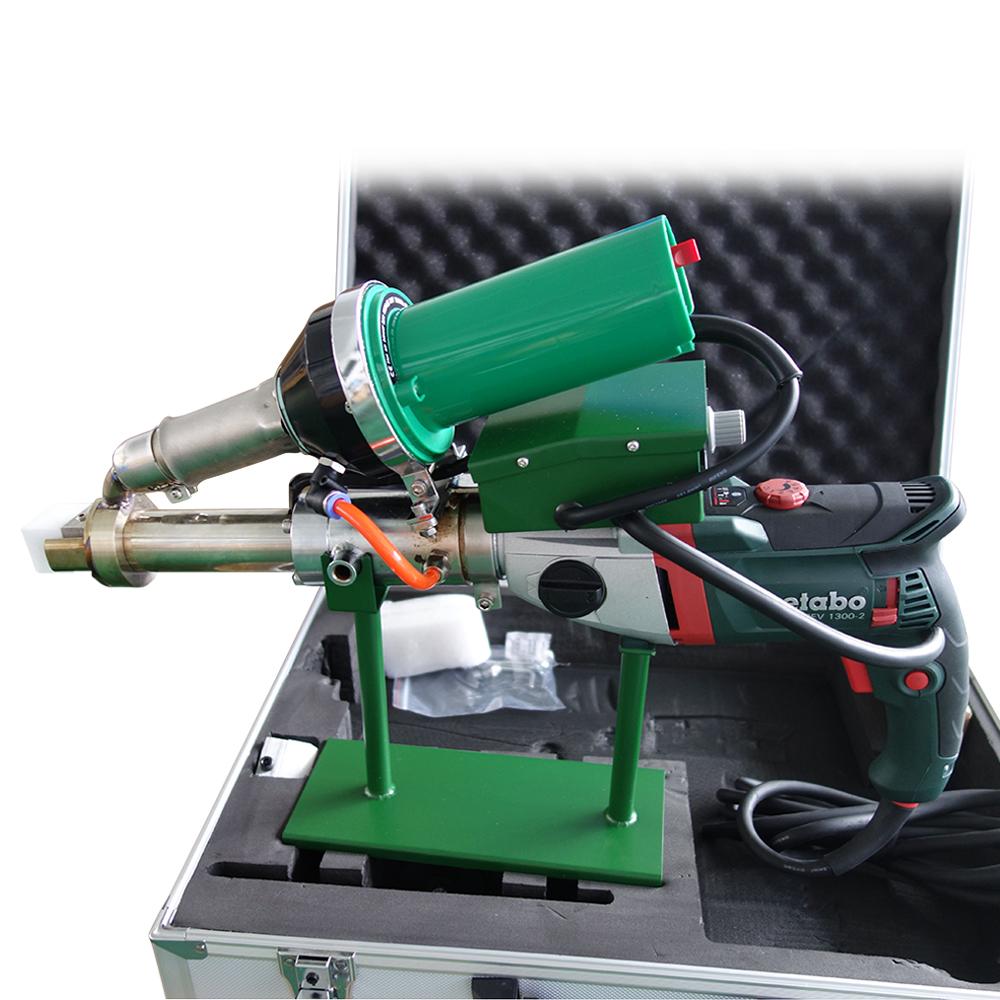

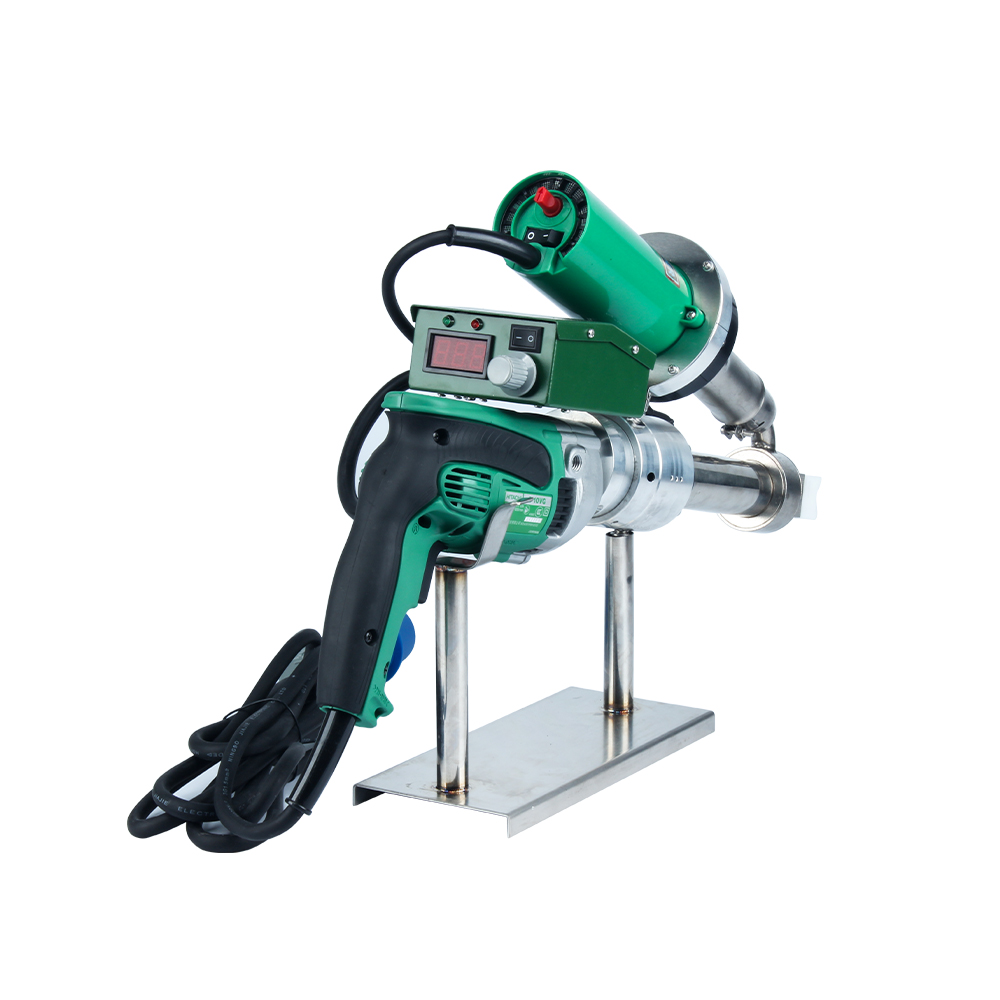

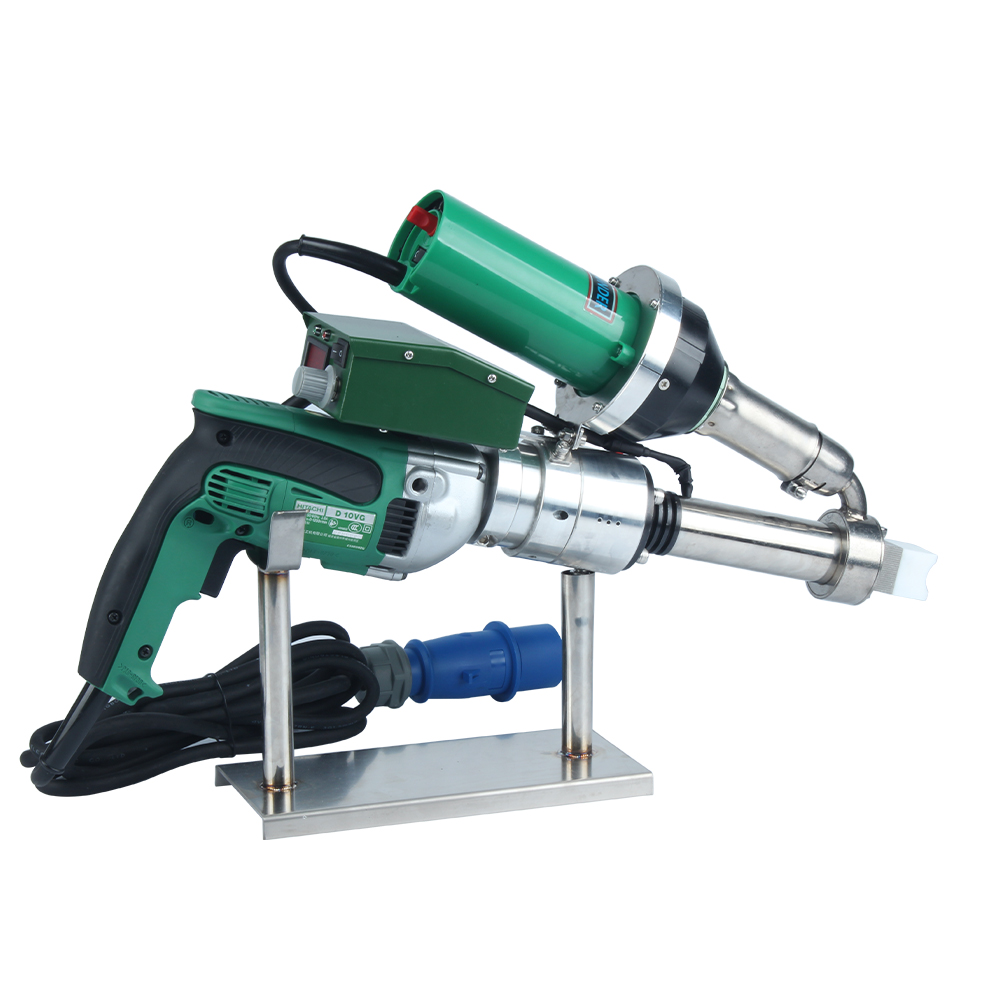

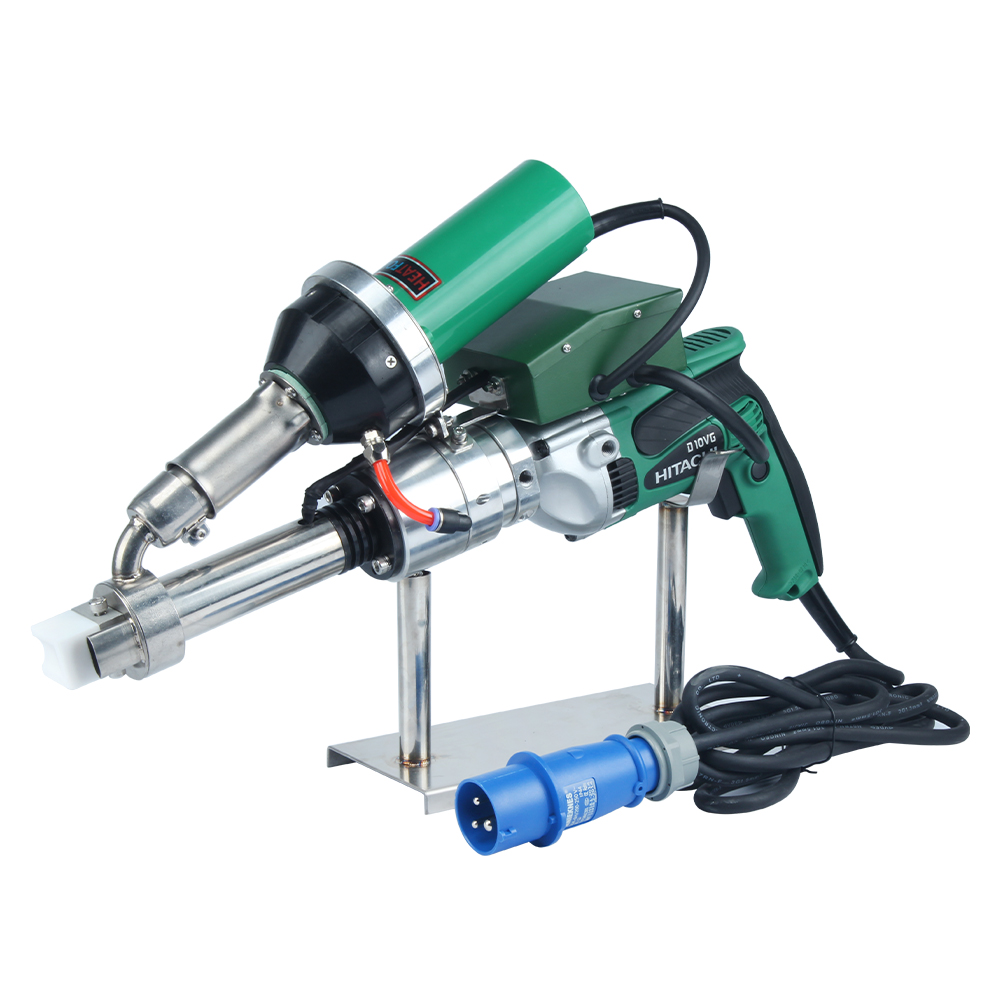

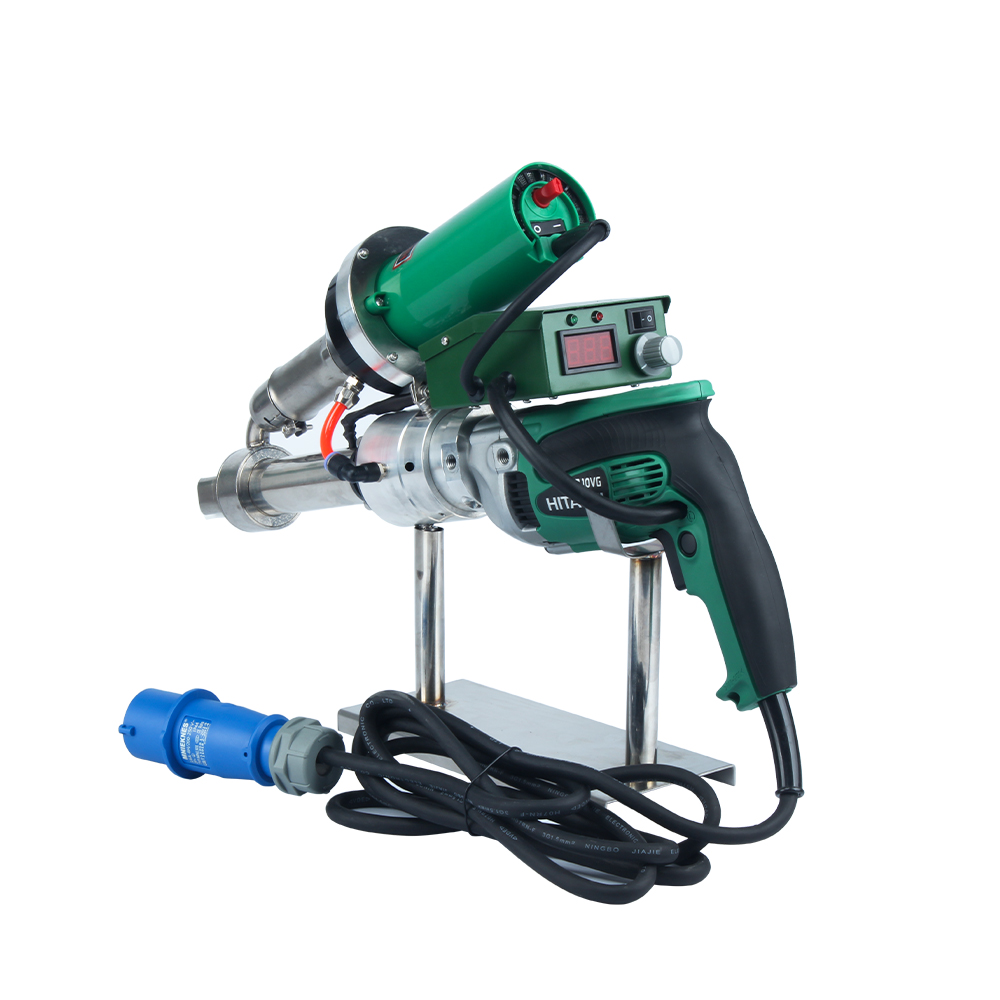

ZX61A Hand extruder is a new type of hot air welder which imported foreign advancedtechnology,
well-developed.It has reached or exceeded the same type products of oversea, filling the domestic blank.
The major components (hot air gun and drive motor)are made of imported brand-name accessories,
stable performance, long service life; they are two independent systems, one is for preheatingraw material,
another is for welding rod extrusion. Reasonable structure, convenient operation, continuous welding, high working efficiency,
powerful extrusion, to make the weld strength is greatly improved. It is the ideal product for a variety of thermoplastic welding processing.

Model: ZX61A
Voltage (V): 220V
Extruding Drive Motor Power:1300W
Welding Rod Heating Power:800W
Hot Air Gun Power:1600W
Air Temperature:20-600°c, Adjustable
Extruding Temperature:200-300°c, Adjustable
Preheating Air Flow:500L/min
Welding Speed:2.0-2.5Kg/h
Welding Rod Diameter Size:Φ3.0-4.0mm

Application
Geotechnical engineering, plastic welding, plastic engineering manufacturing,

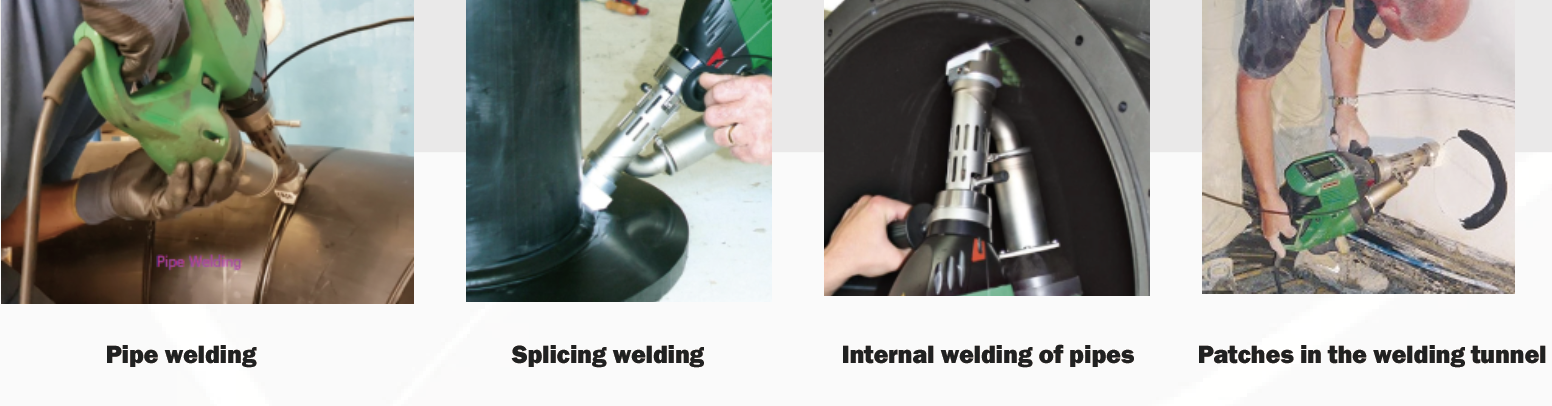

Pipe welding,Splicing welding,Internal welding of pipes,Patches in the welding tunnel
