ZX900A 220V 1300W Plastic Auto Hot Wedge Wlder for Welding of PE PVC and Other Hot Meltable Materials

ZX900A 220V 1300W Plastic Auto Hot Wedge Wlder for Welding of PE PVC and Other Hot Meltable Materials

Name: ZX900A 220V 1300W Plastic Auto Hot Wedge Wlder for Welding of PE PVC and Other Hot Meltable Materials
Brand: HEAT FOUNDER Silicon Nitride Igniter, Silicon Nitride Heating Element
SKU: ZX900A
Availability: InStock
Rating: 5 (1 reviews)

Item No.: ZX900A

The temperature control part of this series of welding machines adopts automatic constant temperature PID control; it has high control accuracy and small temperature fluctuations. The speed control part adopts a pulse width modulation automatic voltage

Ask for a Solution PDF Format

Description

·Welding of thermoplastic materials as well as single - ply flexible plastic and modified bitumen in the form of boards,
tubes profiles,lining membranes,coated materials,films,foams,tiles and sheets.
The following procedures are possible : overlap welding ,welding with rod,with tape,butt welding and melt welding.
·Heating - up for forming,bending and sealing of thermoplastic semi- finished materials and plastic granules.
·Dry of water - damp surfaces.
·Shrinking of heat shrink sleeves,films,tapes,solder sleeves,pre formd and moulded parts.
·Soldering of copper pipes,solder joints and metal foils.
·Defrosting of frozen water pipes.
·Activating / Dissolving of solvent free adhesives and fusion adhesives.
Igniting of wood shavings,paper,coal or straw in furnaces.

Model: ZX900A
Power (W): 1300W
Voltage (V): 220V
Heating Temperature: 450 °C
Thickness of Material to be Welded: 0.2mm-2mm
Welding Width: 0.5-8 m/min
Welding Width: 15mmx2, Interior Cavity:20mm
Overlap width:125mm
Size(LxWxH): 246x235x300 mm
Weight:9kg

Application
Geomembrane,reservoir,landfill

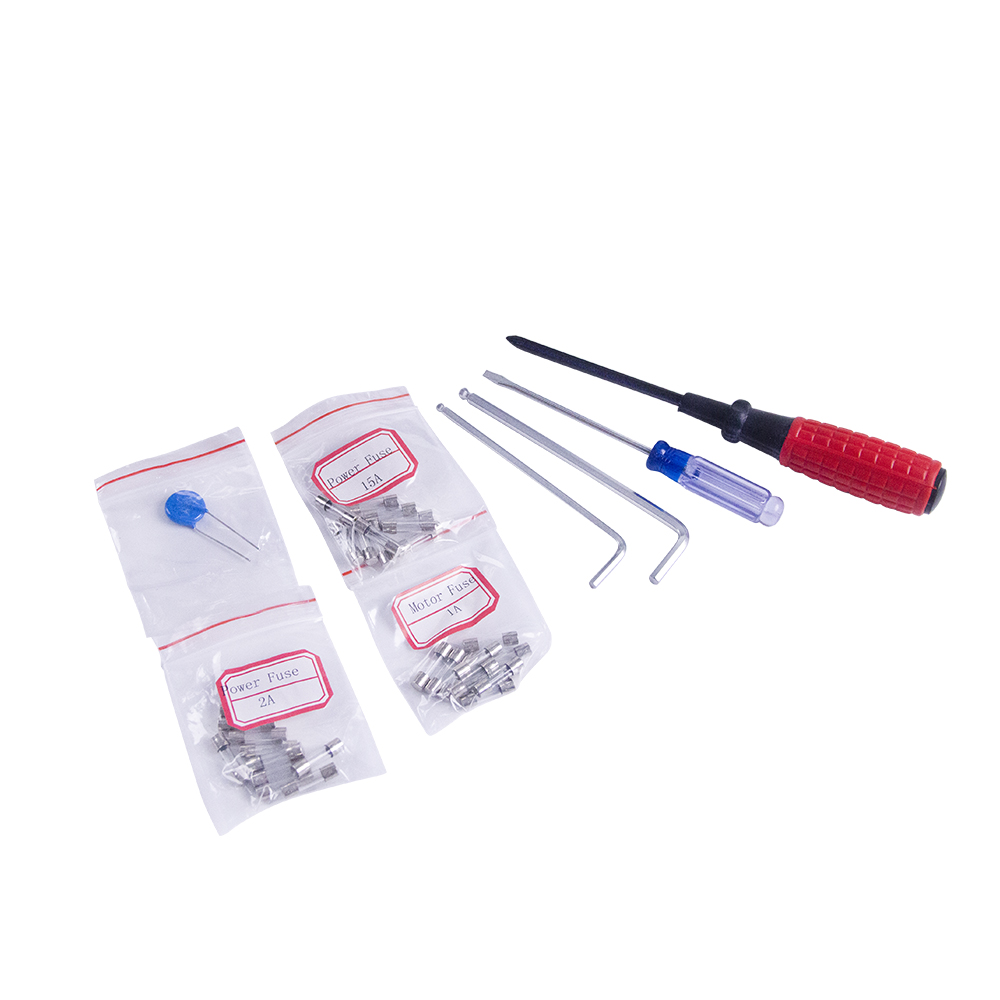

Accessories Ceramic Heating Element
