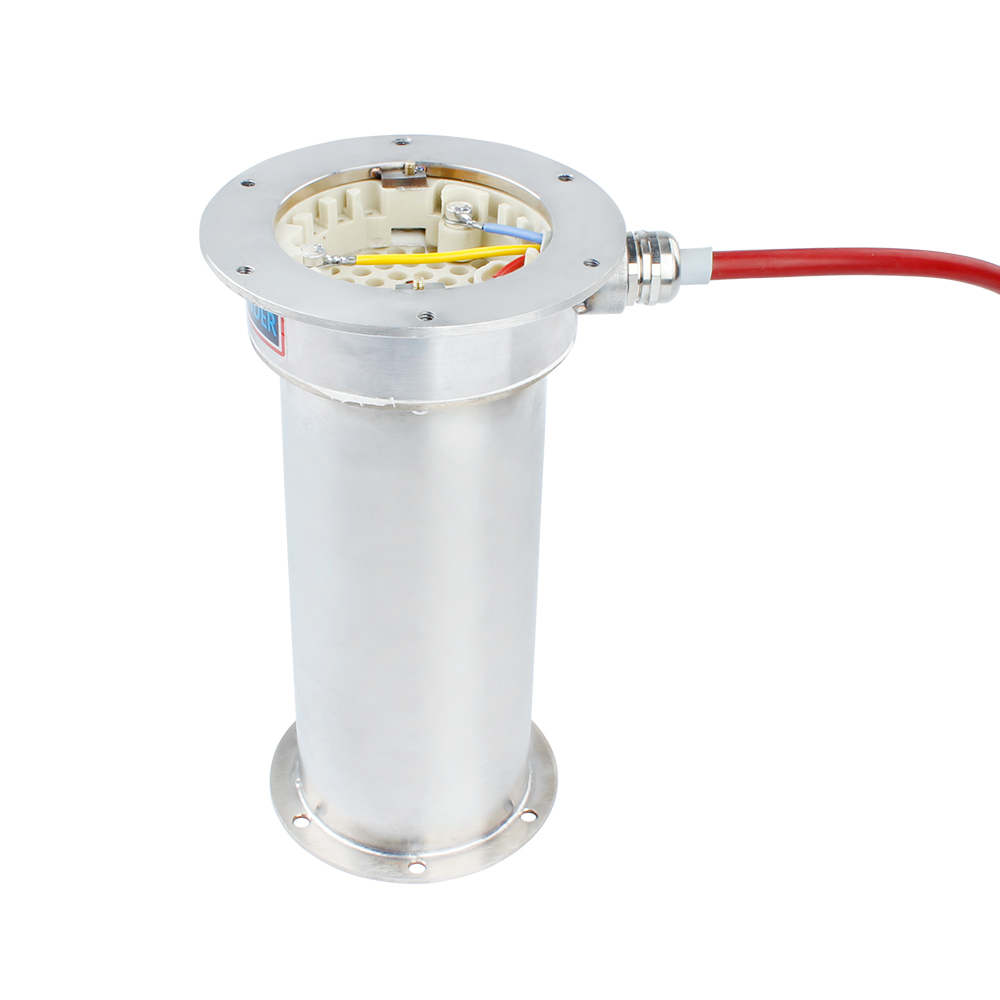

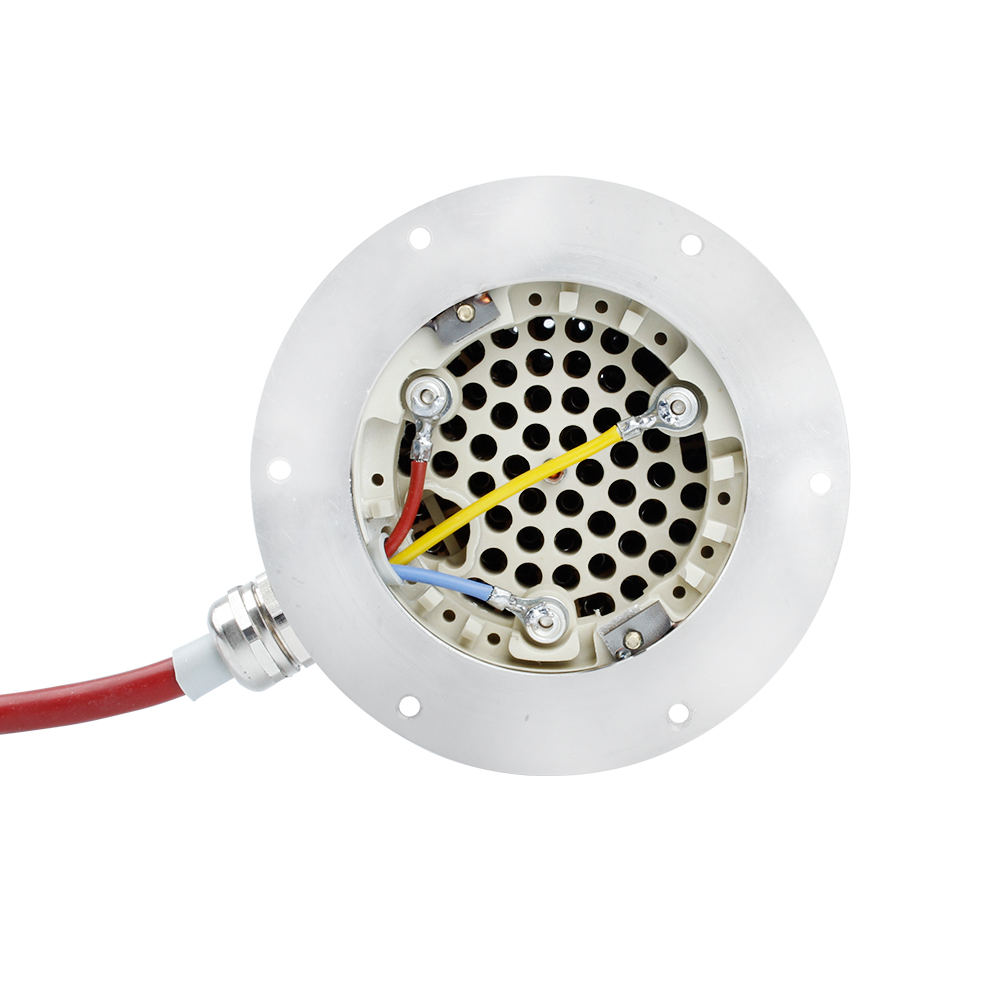

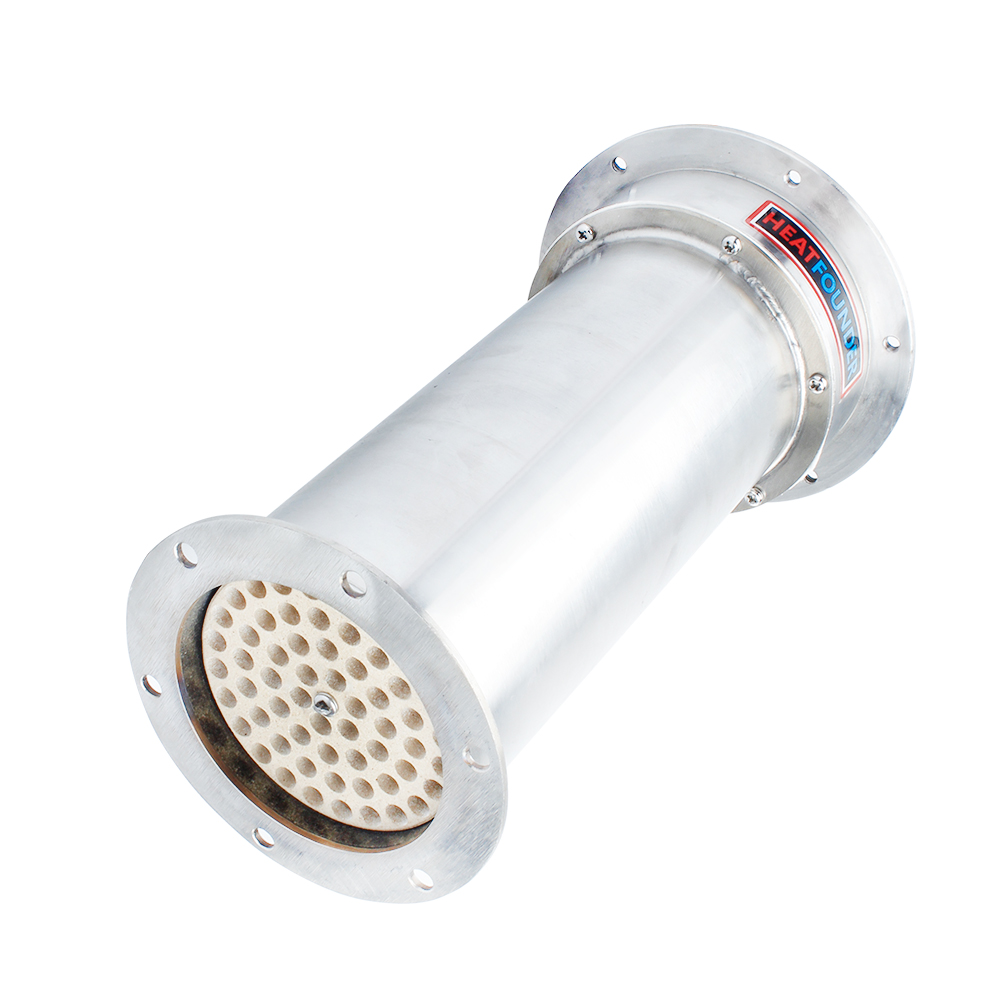

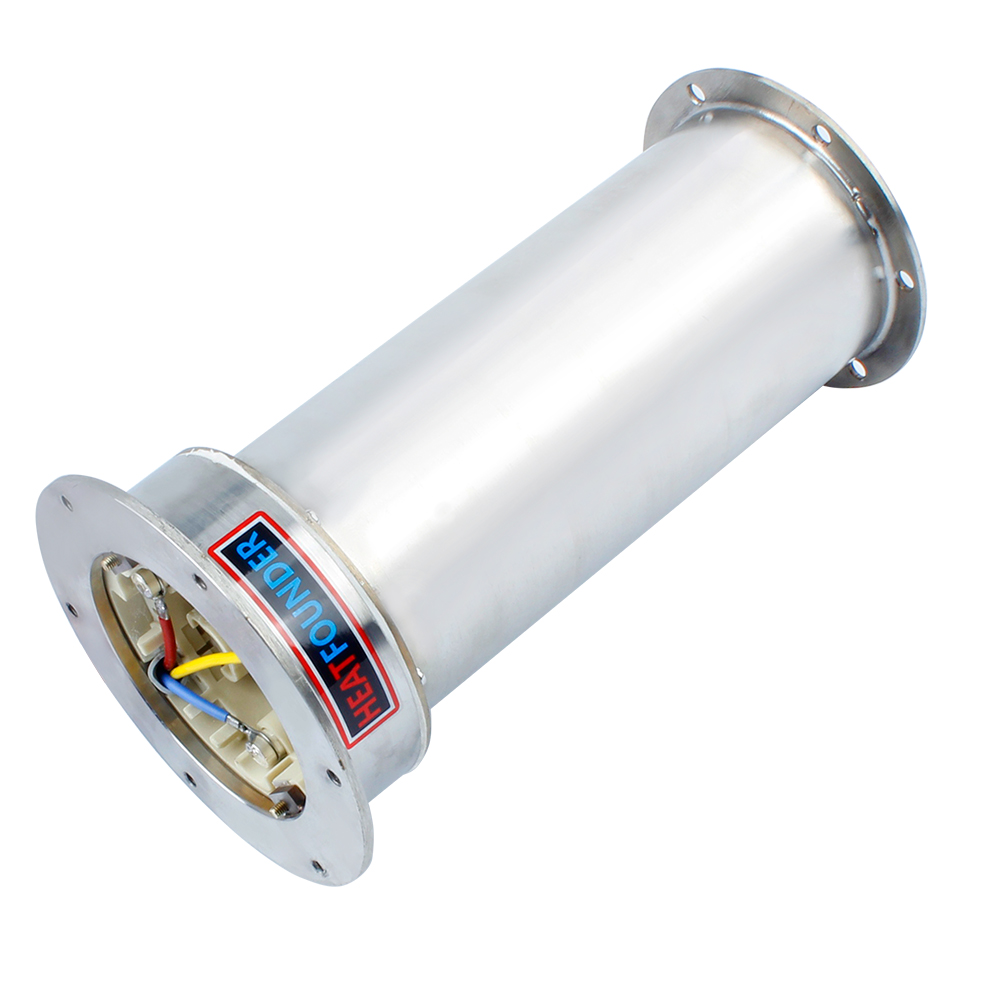

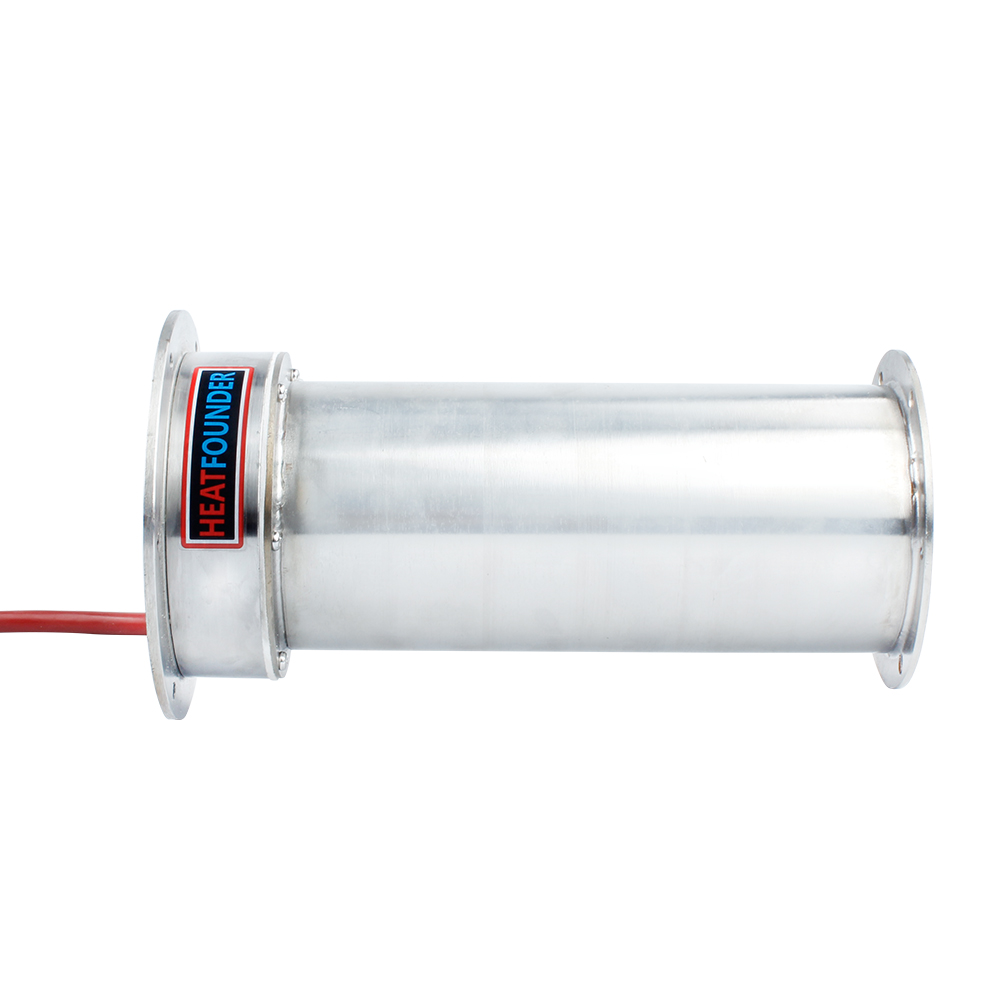

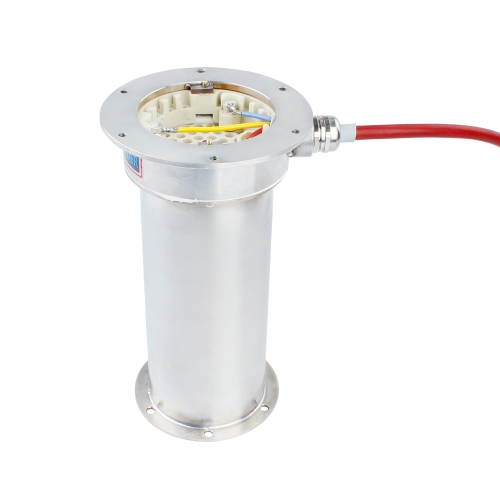

ZX10000DF HT Hot Air Heater 3 Phase,230V/480V 5500W-18000W

ZX10000DF HT Hot Air Heater 3 Phase,230V/480V 5500W-18000W

Name: ZX10000DF HT Hot Air Heater 3 Phase,230V/480V 5500W-18000W
Brand: HEAT FOUNDER Silicon Nitride Igniter, Silicon Nitride Heating Element
SKU: ZX10000DF HT
Availability: InStock
Rating: 5 (1 reviews)

Item No.: ZX10000DF HT

Ask for a Solution PDF Format

Description

1. Electronic control temperature, temperature from normal temperature to 650℃ which can be continuously adjusted.
2. Small volume, light weight, easy to install.
3. Matching with air supply equipment, it can be widely used in film shrink tunnel furnace, hose seals the tail machine,
all kinds of dryer, non-woven fabrics in EVA membrane bonders, "heating assembly" of mechanical assembly equipment or the environment.
Measure point of Hot wind temperature is at 3mm from the outlet of Heater. Match with 3 meters before the inlet and adjust the blower to maximum air volume.

Model: ZX10000DF HT
Power (W): 5500W-18000W
Voltage (V): 3 PHase，230V/480V
Min.airflow(L/min): 1200L/min (15KW)
Min.inlet Temp. ( °C): 160 °C,
Min.outlet Temp. ( °C): 900 °C,
Dimension (mm): 336x135x143mm , Air outlet:φ121.5mm
Weight(kg): 4.75kg
Certification: CE FCC
Warranty: 1 Year

Application
Can be used in circulating or non-circulating systems.

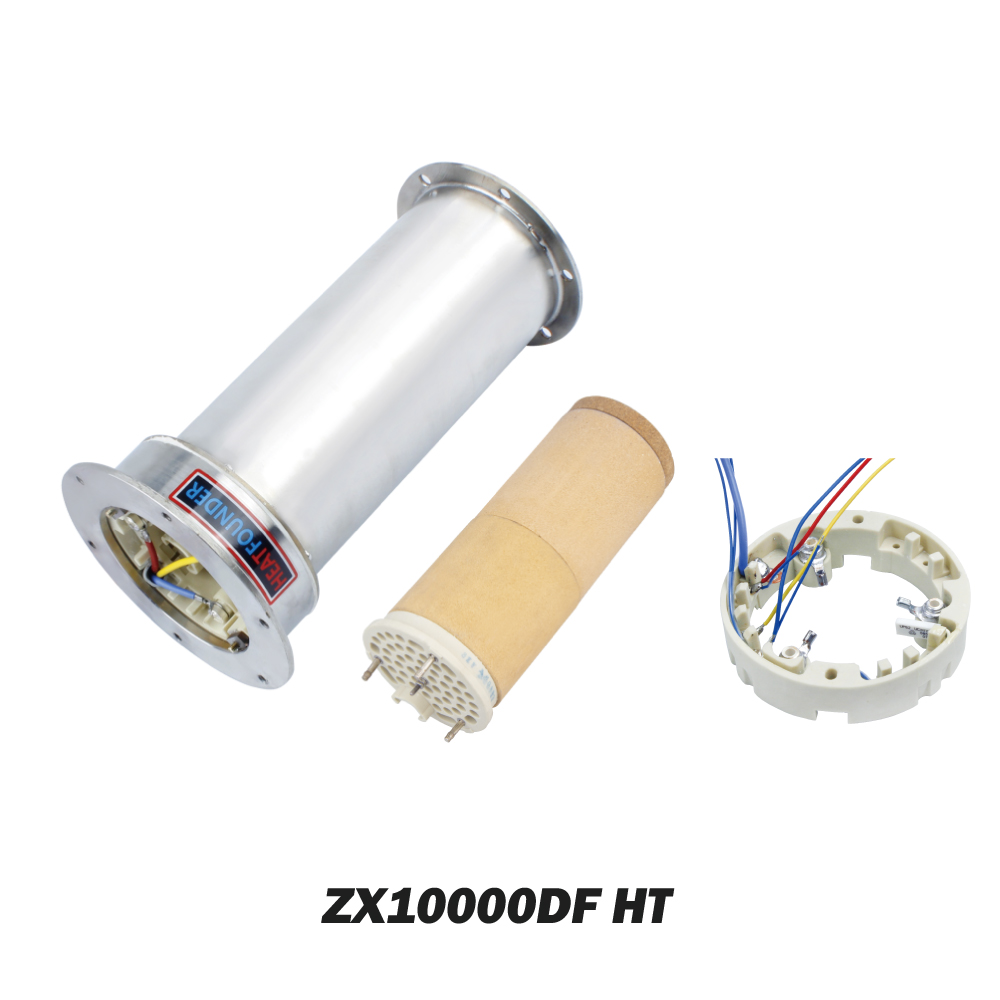

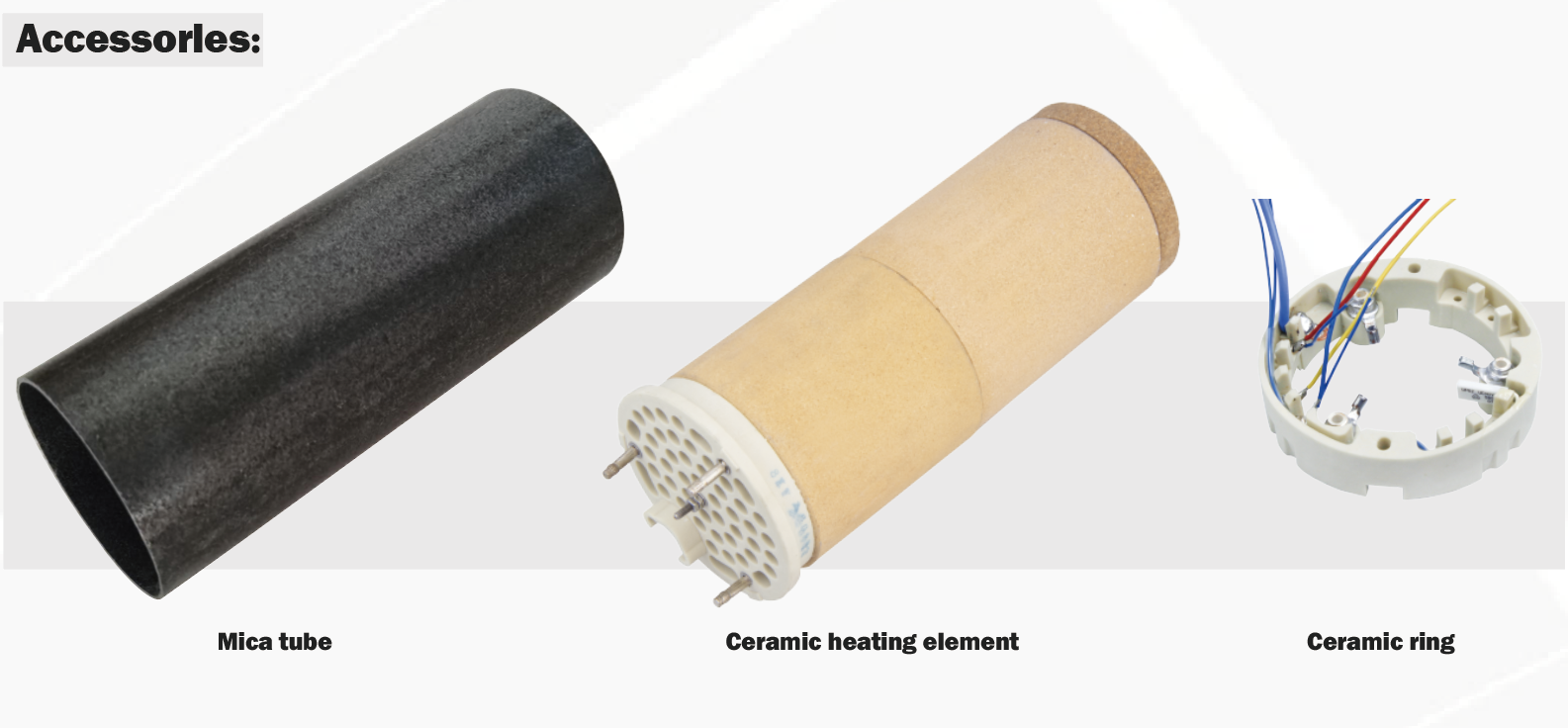

Accessories Ceramic Heating Element
