Functional Design for OEM and Maintenance Professionals
The Silicon Nitride Igniter HF1206 Series targets OEM developers and maintenance teams requiring a dependable furnace ignitor replacement solution for water heating systems. Engineered for compact combustion modules and hybrid systems, this component provides stable thermal output and consistent ignition timing. Its compatibility with various mounting blocks and housings enables seamless integration in existing designs, minimizing maintenance downtime. This igniter is ideal for professionals managing ignition modules in residential and commercial hot surface ignition systems, ensuring reliable operation under demanding thermal cycles and moisture exposure.
Advanced Ceramic Construction and Technical Performance
Constructed from reinforced silicon nitride ceramic, the HF1206 igniter exhibits superior resistance to oxidation, thermal shock, and chemical exposure compared to metallic or fiber-based substitutes. Capable of reaching temperatures up to 1000°C within 10 seconds, it maintains uniform heat distribution with minimal hotspots. Voltage options span 110V and 230V, supporting power outputs from 100W to 900W. The igniter’s dense ceramic matrix guarantees a high service life of up to 90,000 hours while ensuring fast, consistent ignition responsiveness within various ignition-control board systems.
Application in Industrial and Commercial Heating Systems
This high-performance hot rod igniter serves essential roles in gas-assist boilers, pellet stoves, and instant-boil water heaters, where rapid and reliable ignition controls system efficiency and safety. Its moisture-resistant ceramic heater properties allow stable operation in diverse water and environmental conditions commonly found in industrial heating applications. The HF1206 Series integrates well with OEM water heaters and biomass boilers requiring precise thermal cycling, supporting energy-efficient operation and reducing warranty claim rates through dependable performance.
Product Advantages
Design and Integration Benefits of Silicon Nitride Construction
The HF1206 igniter’s modular design incorporates a reinforced silicon nitride ceramic body optimized for thermal efficiency and mechanical durability. Its compatibility with ceramic mounting blocks and steel housings facilitates straightforward integration into existing furnace or water heater systems. The universal connector design accelerates field replacement procedures, enhancing serviceability. These structural and system advantages reduce component failures caused by oxidation or thermal stress, making the igniter a superior choice for furnace ignitor applications demanding longevity and adaptability.
Enhanced Performance and Operational Reliability
Performance-wise, this hot surface ignitor delivers rapid heat-up and consistent temperature control vital for ignition stability. Its stable electrical resistance minimizes ignition failures and supports precise timing in combustion modules. The moisture-resistant ceramic body extends usability in humid or chemically challenging environments, translating into reduced operational disruptions. For end-users, such reliability ensures lower maintenance frequencies and improved system uptime, ultimately offering better ROI in continuous heating operations demanding strict ignition control.
| Name |
Silicon Nitride Igniter |
|
| Model |
HF1206 Series |
|
| Material |
Silicon Nitride (Si3N4) |
|
| H.S. Code |
8516800000 |
|
| Color |
black |
|
| Voltage |
110V 230V |
|
| Power |
100W 400W 450W 600W 750W 900W |
|
| Flange |
Ceramic/Stainless Steel/copper/customized |
|
| Temp Range |
1100~1300 °C/2012~2372℉ |
|
| Ignition Time |
up to 1000°c in 10 seconds |
|
| Samples fee |
Please contact for confirmation. |
|
| Packing |
carton |
|
| Lead time |
5 working days for samples; 12 working days for mass production |
|
| QC |
Strict quality control under SGS, ISO9001 and Intertek. |
|
| Certification |
BSCI, ISO9000/1400,BV TUV SGS FSC etc. |
|
| Applications |
|
| Biomass boiler/burner |
Pellet burners |
|
| Gas burner/stove |
Pellet boiler |
|
| Ignition of gas or oil |
Pellet burner |
|
| Pellet Stove |
Pellet BBQ grill |
|
| Stove fireplace |
Medical-Scientific |
|
| Wood pellet stove |
Heaters-Agricultural |
|
| Particle Burning |
Spark Igniters |
|
| Fuel cells |
EV heating |
|
| Gas appliances |
Glow plug |
|
| Petroleum equipment |
Cabin heater |
|
| Soldering iron |
Gas sensor |
|
| gas furnaces, |
DPF/Catalyst |
|
| gas boiler |
|
|
Rapid heating: Heating faster. up to 1000°c in 10 seconds
Range of temperature:1100~1300 °C/2012~2372℉
Small size / High watt density: High-watt density discharge allow high thermak efficiency.
Long working life:10 years possible,90,000 hours
High insulation
Direct water and kerosene heating
Vacuum environment
Oxidation and chemical resistance
Output switching
Temperature sensing |
|
| |
| |
| |
| |
| |
| |
| |
| |
| |

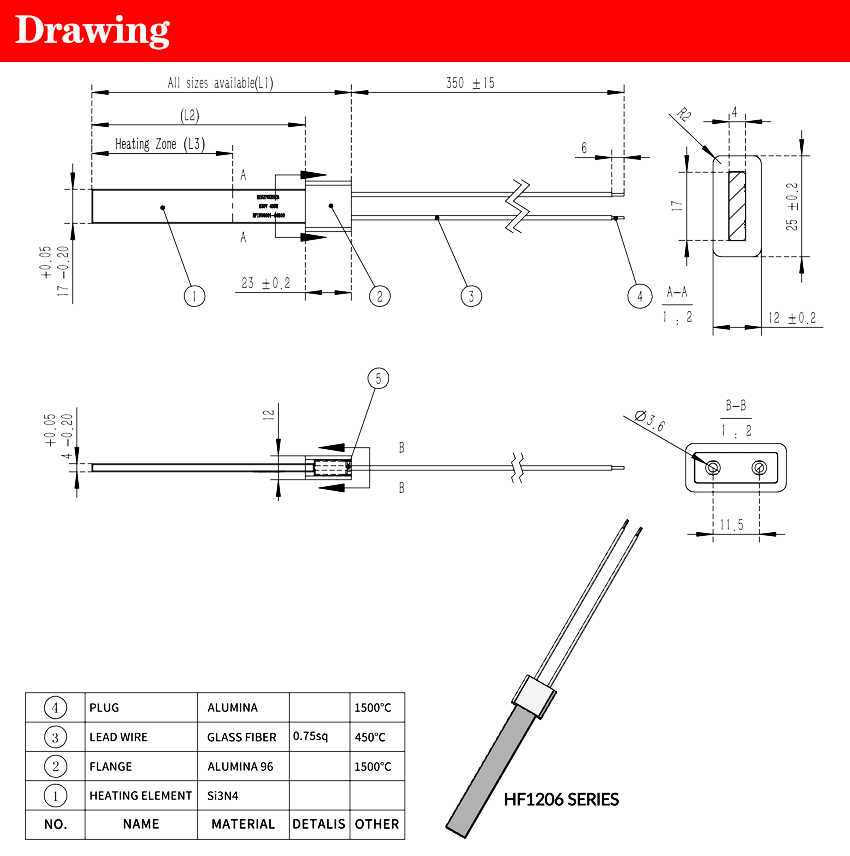

| Model Number |
Voltage(V) |
Rating power(W) |
Width(MM) |
Total length Width(MM) |
Length under flange(MM) |
Length of Hot Zone(MM) |
Max.OD.flange(MM) |
| HF1206001 |
110 |
100 |
17 |
52 |
29 |
15 |
23 |
| HF1206002 |
230 |
400 |
17 |
95 |
72 |
58 |
23 |
| HF1206003 |
230 |
600 |
17 |
115 |
92 |
76 |
23 |
| HF1206004 |
230 |
900 |
17 |
115 |
92 |
76 |
23 |
| HF1206005 |
230 |
400 |
17 |
128 |
105 |
84 |
23 |
| HF1206006 |
230 |
600 |
17 |
128 |
105 |
84 |
23 |
| HF1206007 |
230 |
600 |
17 |
135 |
112 |
98 |
23 |
| HF1206008 |
230 |
900 |
17 |
135 |
112 |
98 |
23 |
| HF1206009 |
230 |
450 |
17 |
138 |
115 |
94 |
23 |
| HF1206010 |
230 |
750 |
17 |
138 |
115 |
94 |
23 |
Use Scenarios
Integration in Pellet Stove and Biomass Boiler Ignition Modules
In industrial biomass and pellet stove scenarios, the HF1206 series igniter acts as a critical ignition element within compact combustion modules. These environments require fast, repeatable ignition cycles resistant to wear from atmospheric contaminants and thermal stress. Its ceramic heater construction promotes consistent hot surface ignition despite fluctuating fuel quality and moisture levels, complying with strict emission and operational standards. This igniter plugs directly into standardized mounting and control assemblies, streamlining integration and maintenance in commercial heating equipment requiring sustainable and controlled combustion.
Replacement Solution for Commercial Water Heating Systems
Within commercial water heating installations, the silicon nitride igniter functions as a reliable furnace ignitor replacement that withstands rigorous thermal cycling and corrosive water exposure. Targeted at operators managing hybrid electric-to-gas water heaters, this product reduces system faults by delivering uniform heat and rapid ignition responsiveness. Its design supports compatibility with various flange materials and power ratings, adapting efficiently to on-site maintenance workflows. By minimizing ignition failures, it enhances operational continuity and reduces total cost of ownership in large-scale water heating infrastructure.
FAQ
How do I ensure the HF1206 Series igniter fits my existing water heater system?
We design the HF1206 Series for compatibility with standard ceramic mounting blocks and steel housings, enabling straightforward integration into most water heating modules. Its universal connector also makes it a reliable furnace ignitor replacement, simplifying installation and reducing downtime.
Can I order the silicon nitride igniter HF1206 Series with specific voltage and power options?
Yes, we offer multiple voltage levels (110V, 230V) and power ratings from 100W up to 900W to match diverse application needs. Custom flange materials are also available to fit your exact specifications, ensuring the igniter integrates perfectly within your system.
What makes the HF1206 igniter more durable than traditional metal igniters?
Our igniter uses a reinforced silicon nitride ceramic body that resists oxidation, moisture, and thermal stress. This results in a long service life of up to 90,000 hours with stable performance, making it a dependable hot rod igniter that withstands harsh operating conditions.
What are the typical lead times for samples and bulk orders of this ceramic heater component?
We typically provide samples within 5 working days, and mass production lead time is about 12 working days. We maintain strict quality control with ISO9001 and SGS certifications to ensure reliable delivery and consistent product performance.
Buyer guide: For a structured ignitor replacement checklist, see Silicon Nitride Ignitor Replacement Guide.
