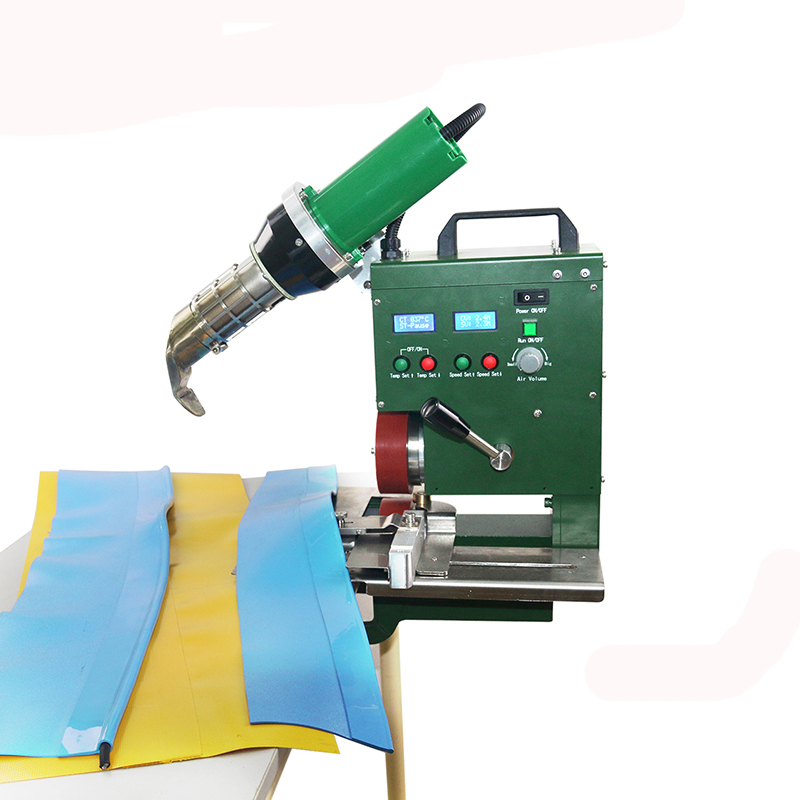

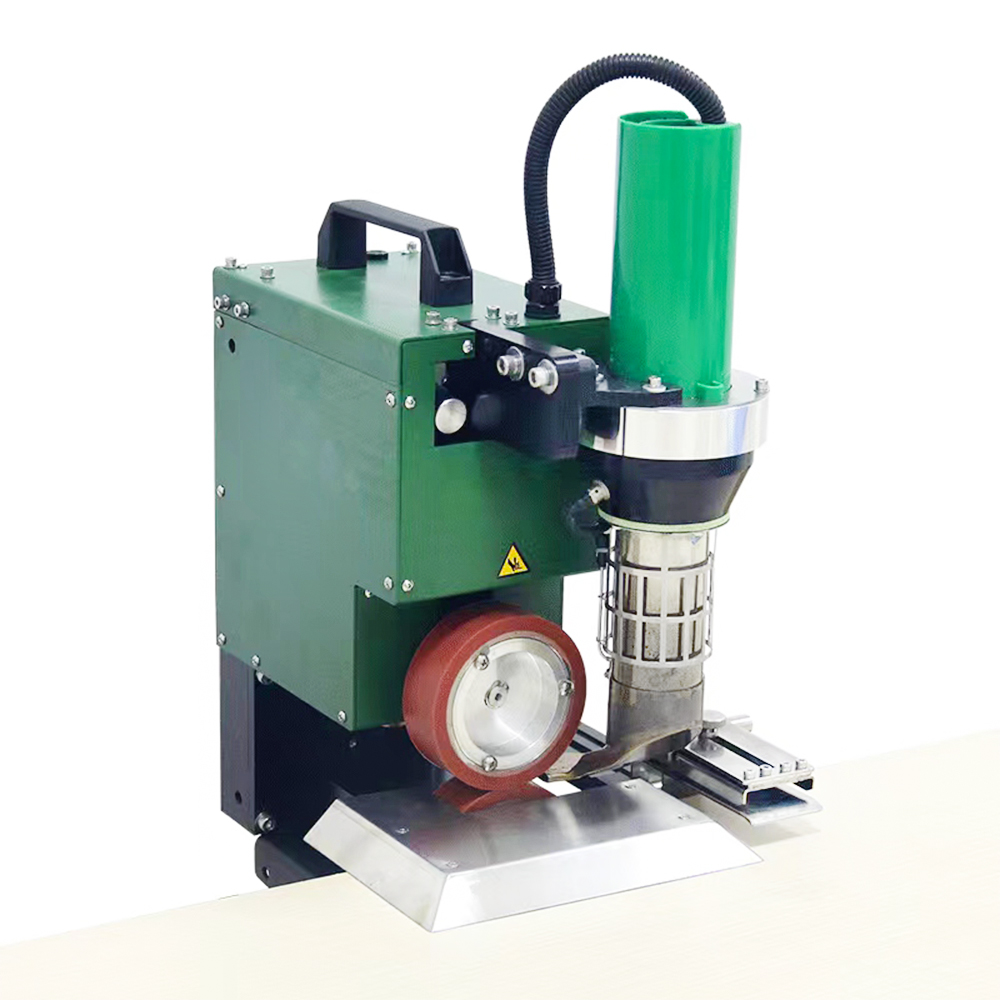

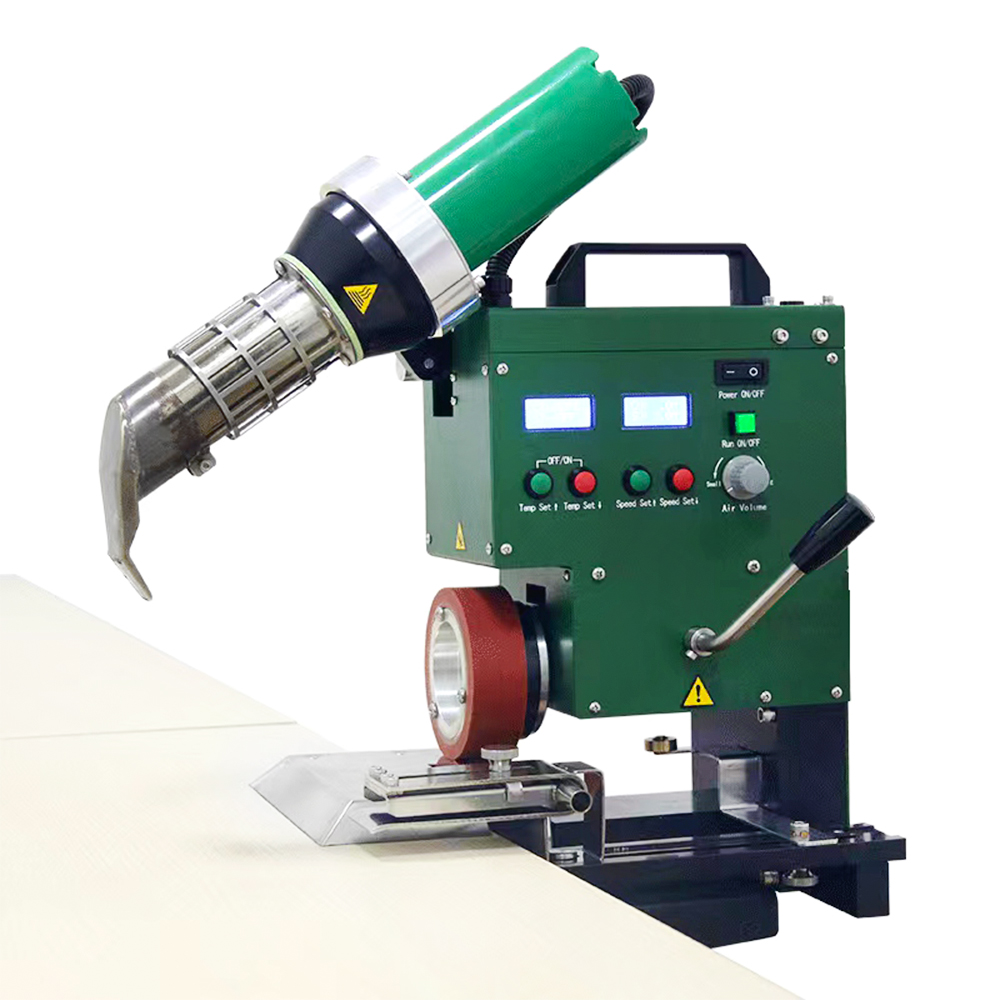

Hemming Banner Plastic Welding Machine Powerful Adjustable Pvc Welder Machines For Tarpaulin / Billboards

Hemming Banner Plastic Welding Machine Powerful Adjustable Pvc Welder Machines For Tarpaulin / Billboards

Name: Hemming Banner Plastic Welding Machine Powerful Adjustable Pvc Welder Machines For Tarpaulin / Billboards
Brand: HEAT FOUNDER Silicon Nitride Igniter, Silicon Nitride Heating Element
Availability: InStock
Rating: 5 (1 reviews)

Ask for a Solution PDF Format

Description

Hem Welding Machine which can weld geo-membrane of various thickness and are applicable for welding
of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and so on.
Hot Wedge Welder is small, light,high welding efficient.
This hot wedge welder is available for welding HDPE, LDPE ,EVA ,PVC, ECB, PP and other hot melt materials.
The control of this series of welding machine adopts PID automatic thermostatic control with high control accuracy
and low temperature fluctuation; speed control adopts PWM automatic voltage and speed regulation circuit, driven
by DC servo motor, with great output torque and the operating is stable.
It can maintain a constant speed on the condition of creeping, vertical creeping and variable road load. Also this
series of welding machine is stable in performance despite of external temperature and voltage variation.
This series of welding machine is excellent in performance and easy for operating, with high welding speed and
good work quality.
It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on.

Model: Hem Welding Machine
Power (W): 2300/3600W
Voltage (V): 120V/230V
Heating Temperature: 50-620 °C
Welding Speed（m/min): 0-12 m/min
Welding Width(mm):20/30/40mm,Customized
Air Volume:70-100% Inorganic Adjustable
Overlap Width(mm):160mm
Parent Material Size(LxWxH): 350350560mm
Weight:20kg

Application
Hem Welding Machine which can weld geo-membrane of various thickness and are applicable for welding
of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and so on.

Accessories Ceramic Heating Element
